Aircraft Accessory Gear Box Design

ME_314 Design Project // San Diego State University

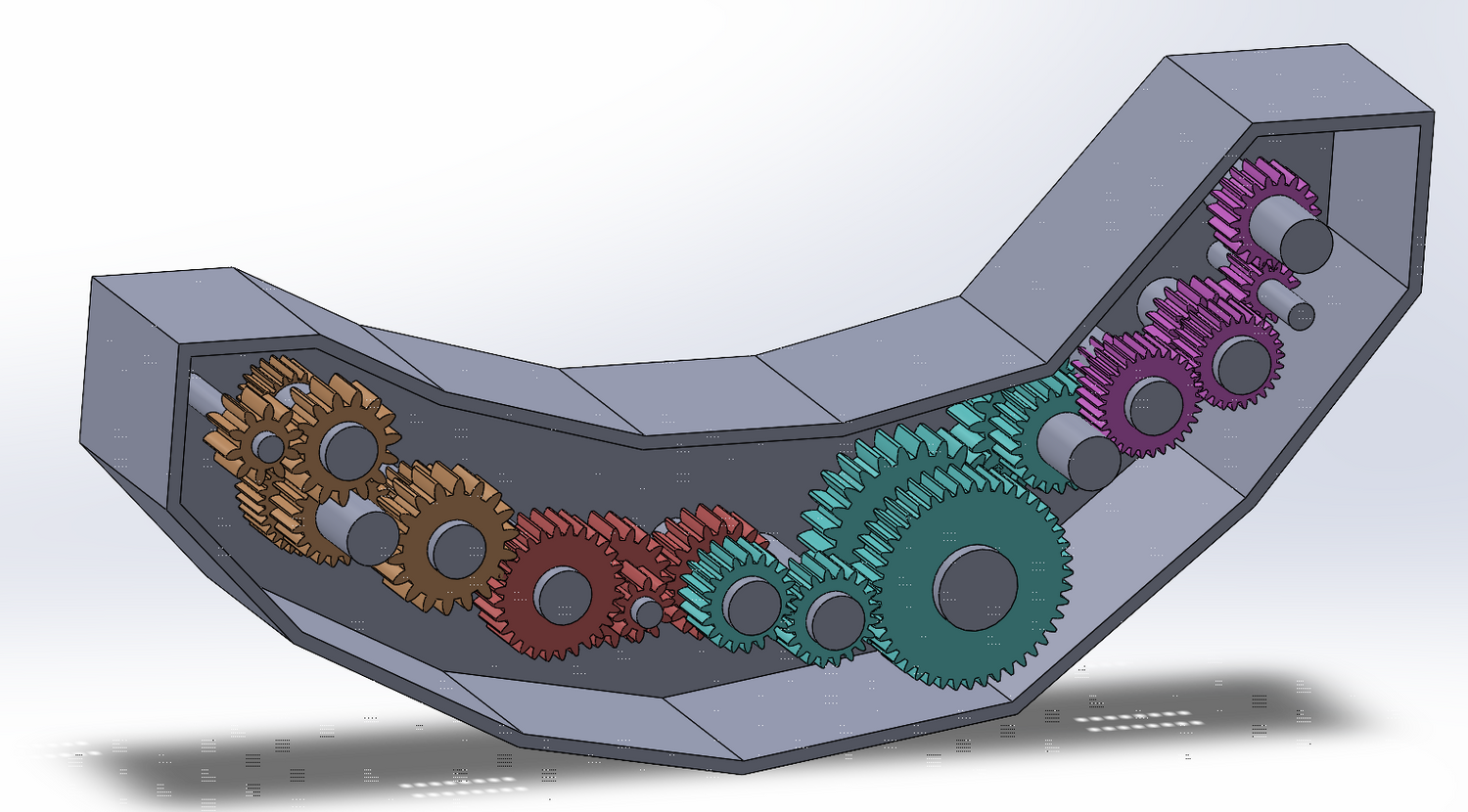

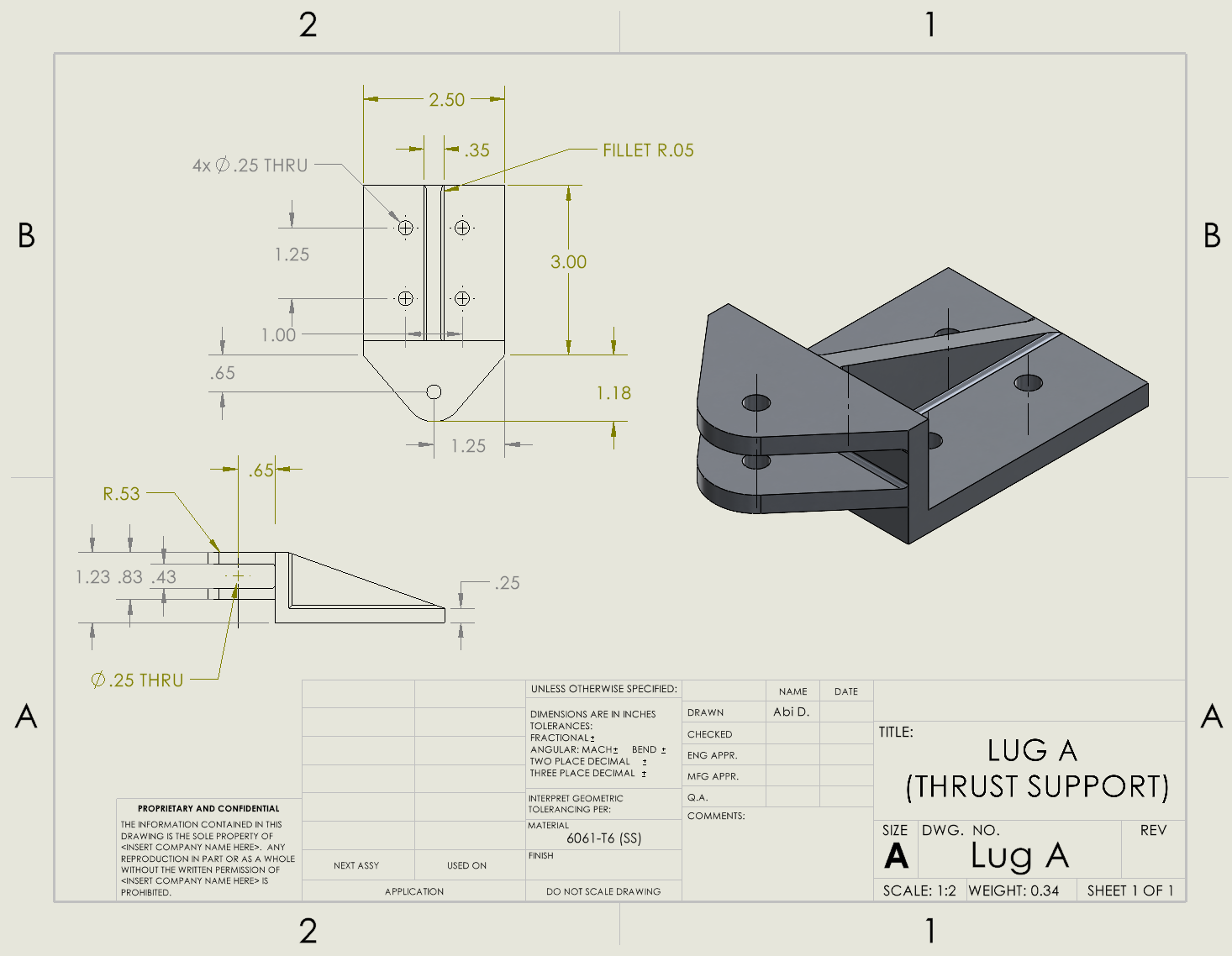

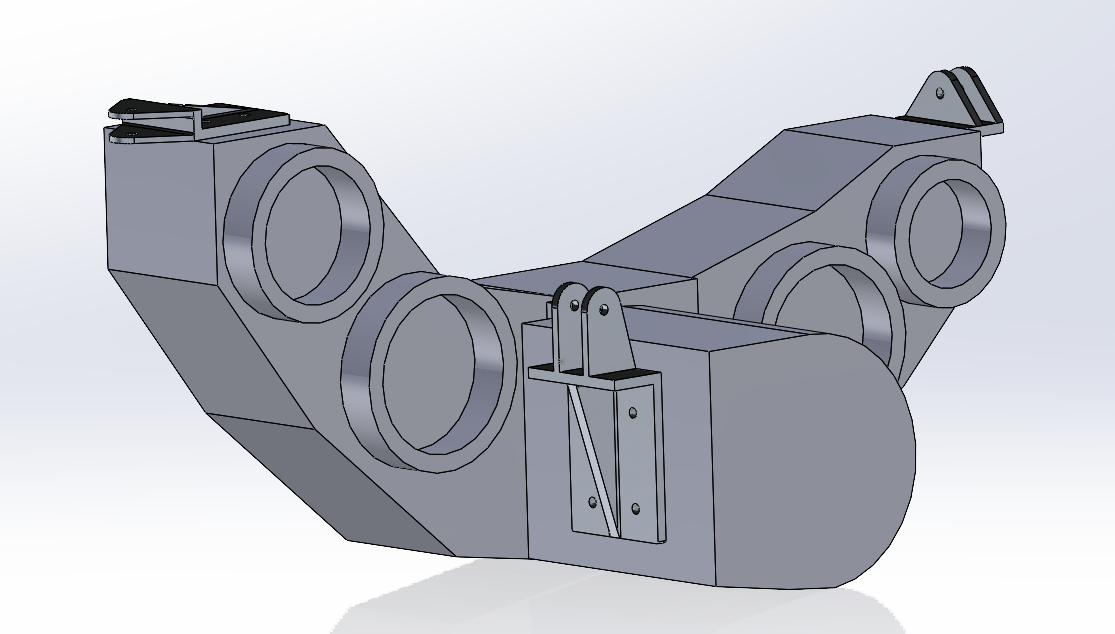

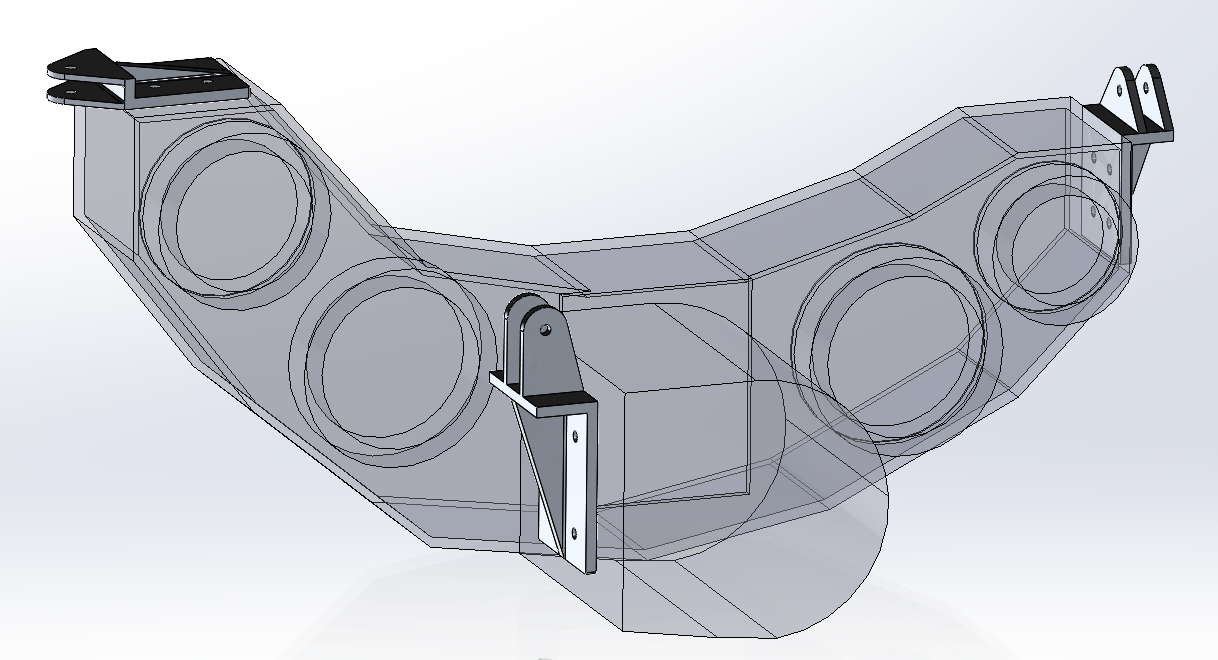

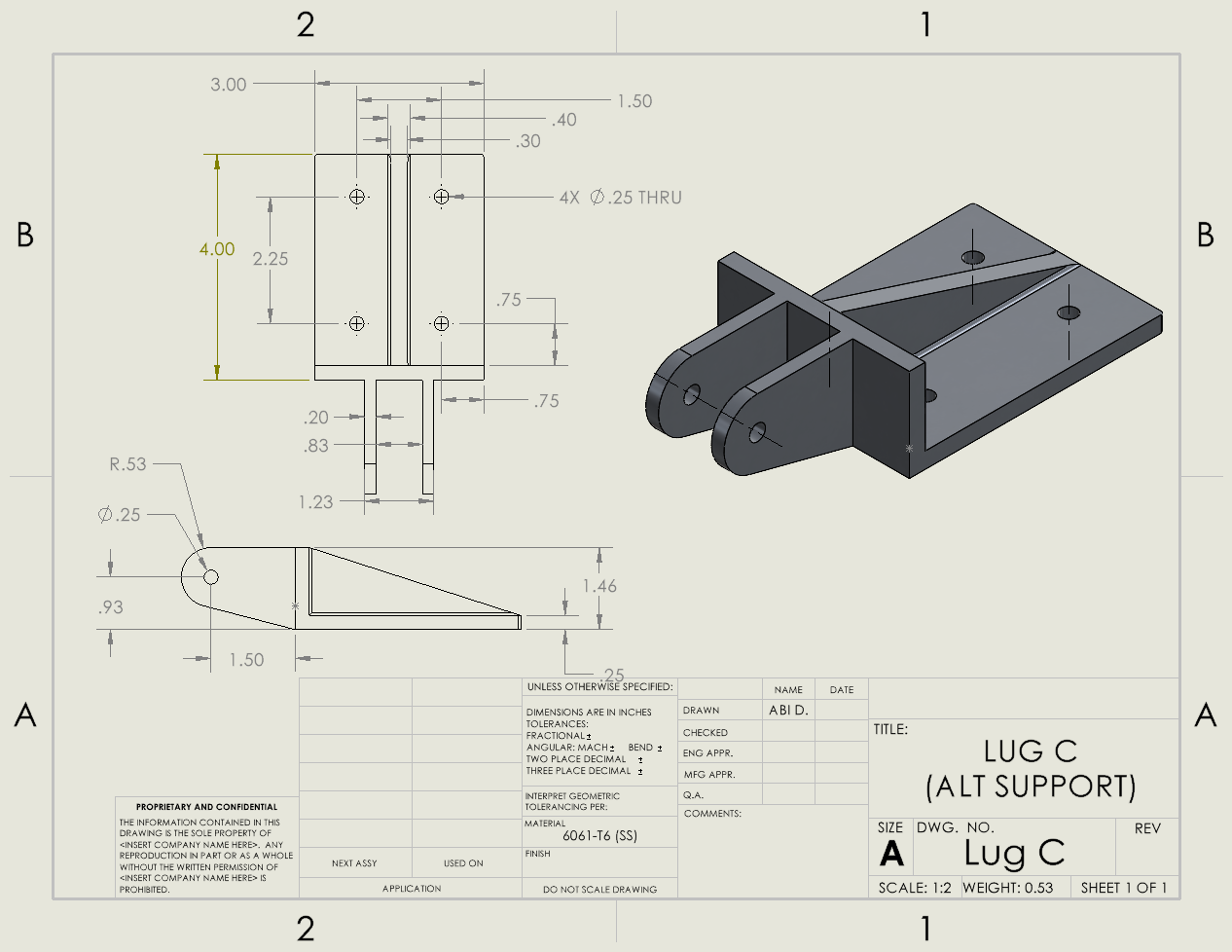

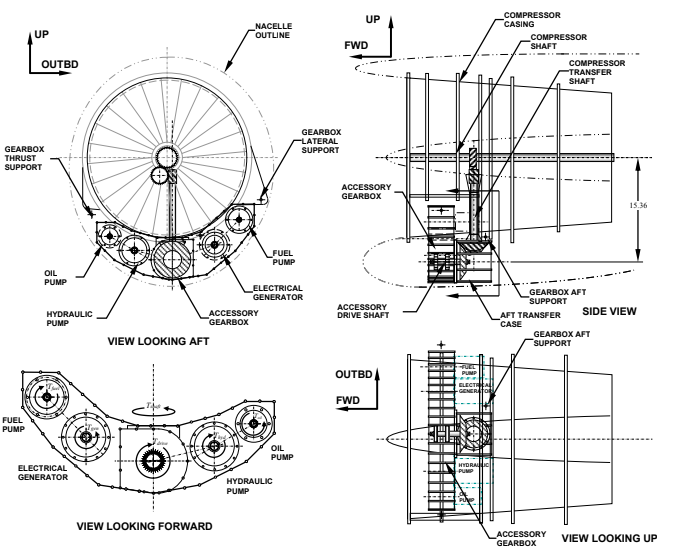

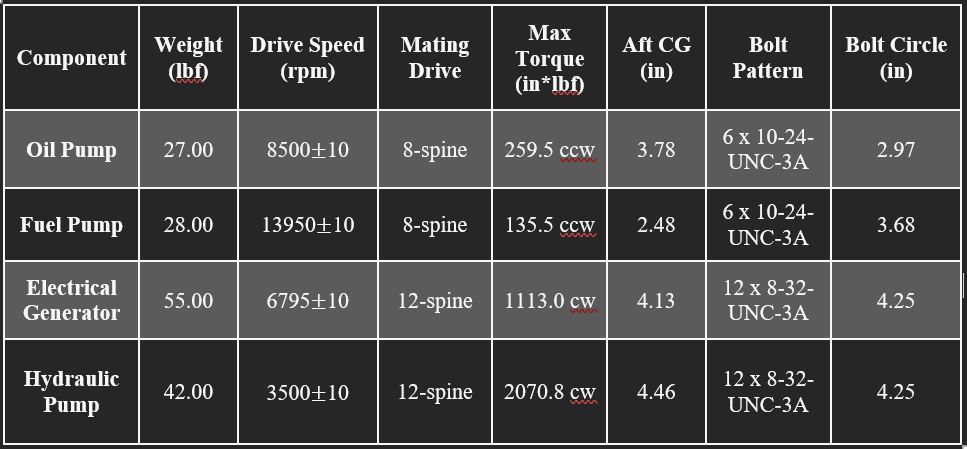

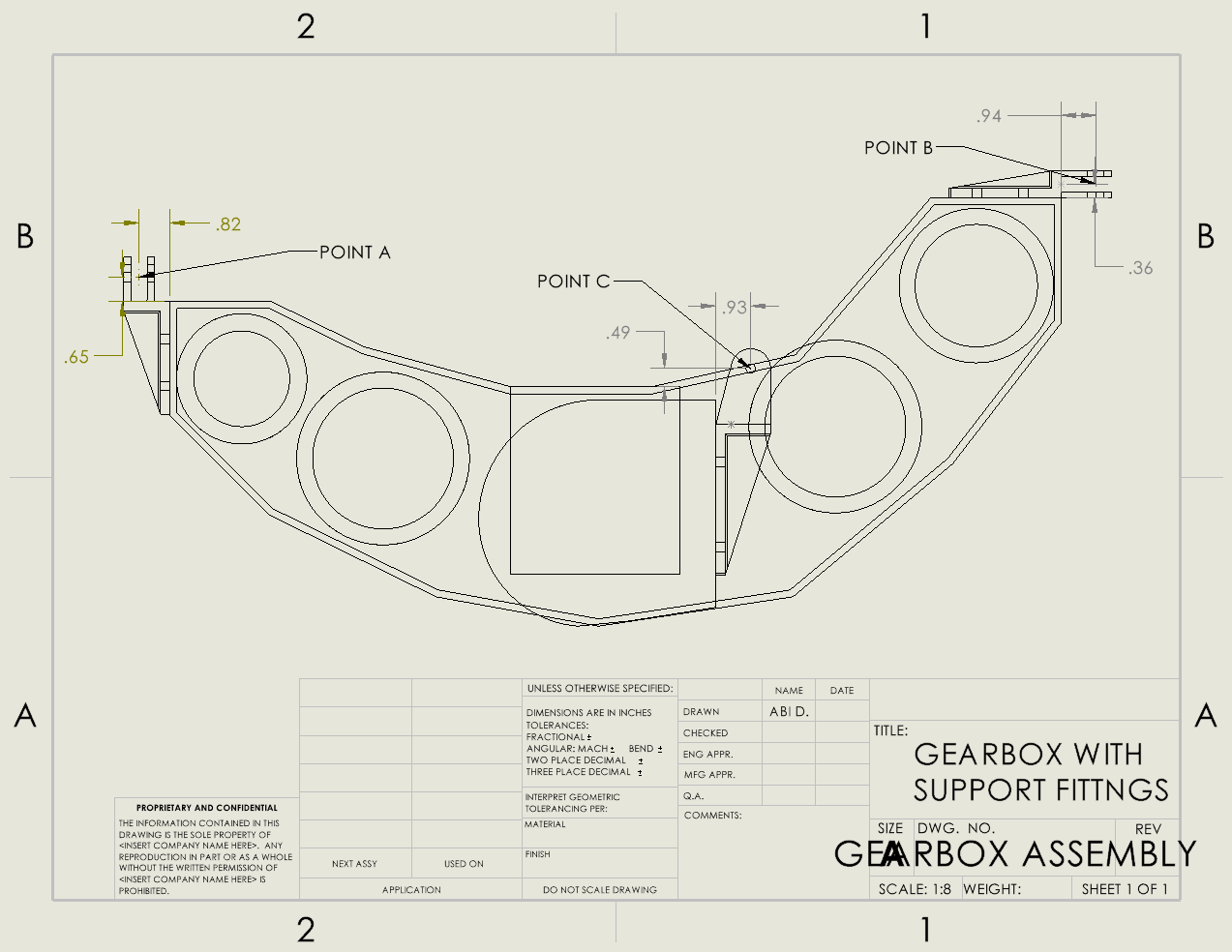

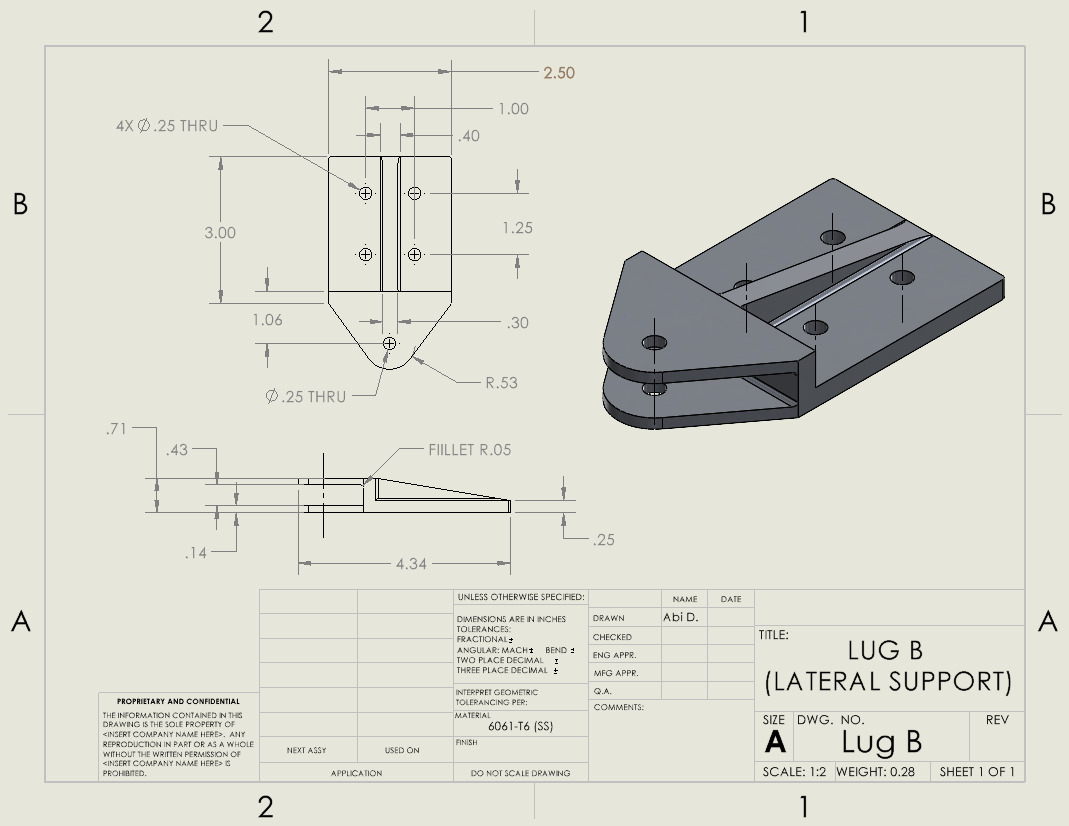

I was tasked to design removable mounting lugs for an aircraft accessory gear box, along with designing the internal gears & sizing to supply power to the accessories. I was given the speeds and torques that each accessory needed and the weight and geometry of the gear box.
